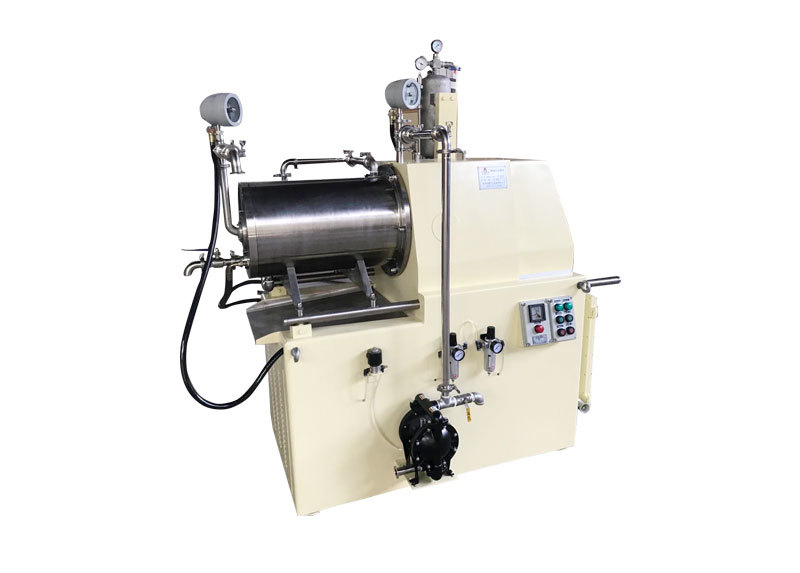

Product details
Main features introduced:
·One machine has two grinding cylinders to make the material grind under different working conditions;
·Materials can be ground in two grinding cylinders successively, which saves connecting pipes and floor space;
·Large-size dynamic and static composite discharge device to ensure smooth discharge;
·The tooth-shaped dispersion disc at the discharge end prevents the grinding media from accumulating at the discharge end;
·The grinding cylinder and the front end cover are equipped with cooling water jackets to make the material cooling effect better;
·SD100AX is placed under the cylinder, which is easy to use and maintain.
SD series main technical parameters
|
Parameters/Model |
Dimensions |
Main motor power (KW) |
Feeding capacity (L/min) |
Production capacity (Kg/h) |
Total weight (Kg) |
||
|
长 |
宽 |
高 |
|||||
|
SD55A |
2100 |
1200 |
1700 |
30 |
0-40 |
100-1000 |
约1350 |
|
SD100AX |
2100 |
1280 |
1800 |
45 |
0-40 |
120-1300 |
约2000 |
